| Place of Origin: | Zhejiang, China (Mainland) |
|---|---|
| Brand Name: | LE or OEM |
| Certification: | CE, IS9001,RoHS |
| Model Number: | WS1 |
| Minimum Order Quantity: | 50 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Assembly packing or flat packing. |
| Supply Ability: | 1000 Piece/Pieces per Week Wall Mounted Cabinet |
| Cabinet Standard: | IEC297-2 | Material: | SPCC Quality Cold Rolled Steel |
|---|---|---|---|
| Color Serial: | Ral9004; Ral9005; Ral7035 | Height: | 4U-27U |
| Loading Capacity: | Static Loading: 60kg | Degree Of Protection: | IP20 |
| Highlight: | Assembled Packing Server Rack,4U Server Rack,Black Single Section Server Rack |
||

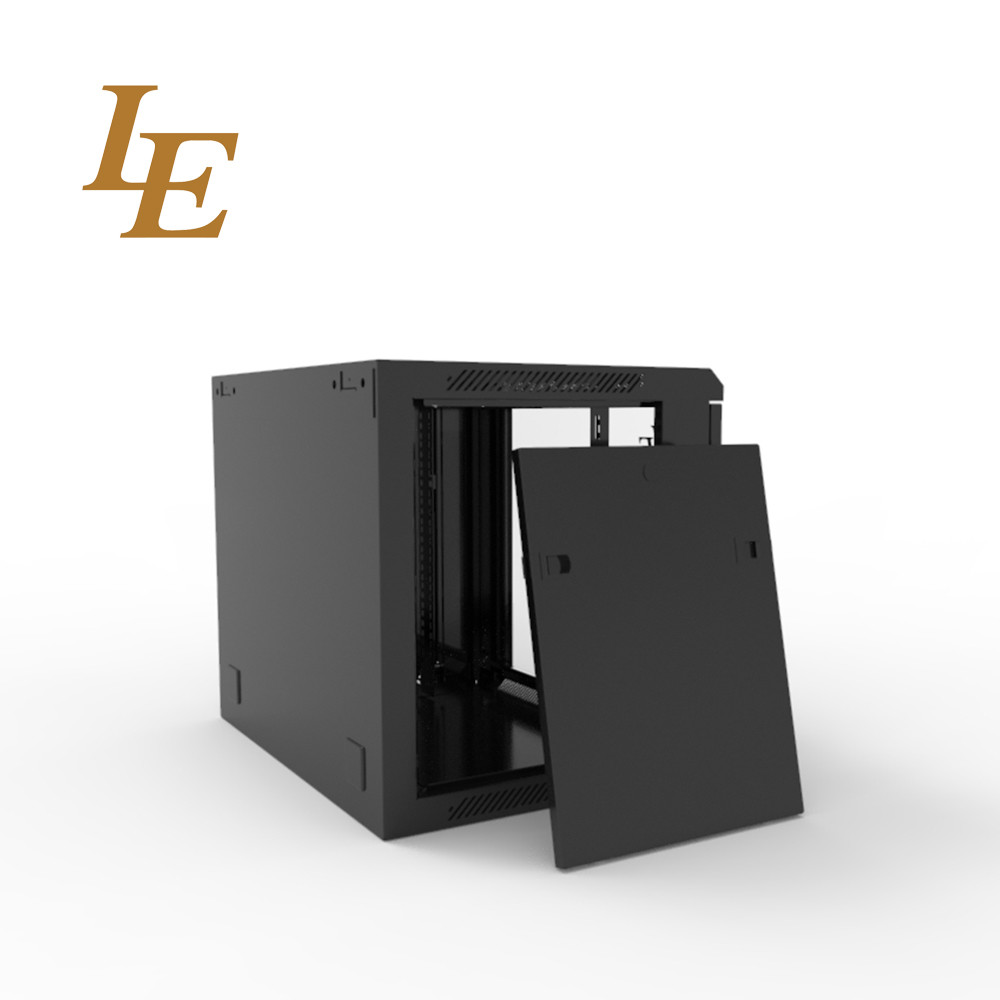

LE 4U 6U SPCC Black Single Section Wall Mounted Server Rack Assembled Packing
Features:
Welded frame,single section,compatible with 19" standard equipments;

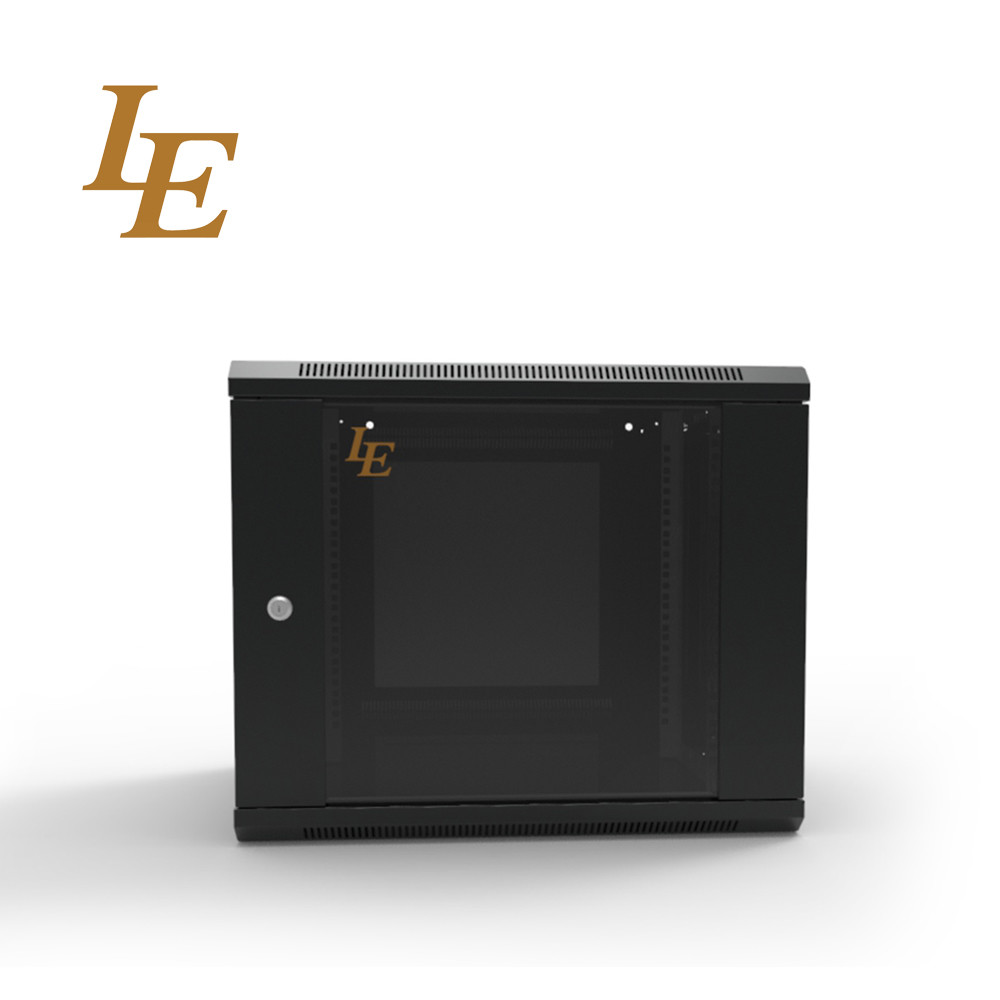

5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional;
Cable entry on the top and bottom;
L-shaped mounting profile,easy to adjustable on the mounting rail;

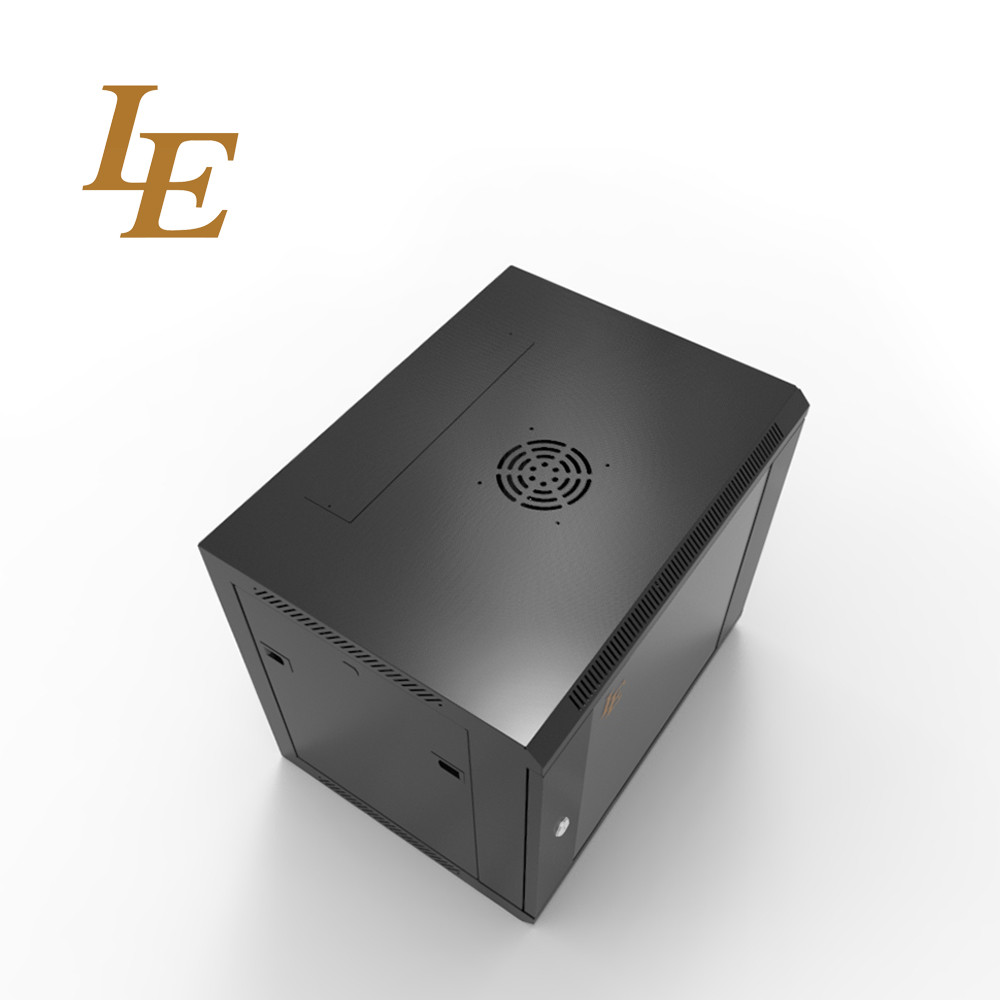

Fan cutout on the top,easy to install fan;
Installing back panel,easy to fix on the wall;
Various accessories for option;
| S/N |
LE-WS1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel: Thickness:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-27U Width: 600mm Depth: 550mm, 600mm |
|
Main Structure
1. Installing Backboard 2. Mounting profile (L-shaped) 3. Cable entry plate 4. Side panel 5. Tempered glass front door 6. Tempered glass front door with vented border 7. Tempered glass front door with meshed border |
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
