| Place of Origin: | China |
|---|---|
| Brand Name: | LE or OEM |
| Certification: | CE ROHS |
| Model Number: | LE-WS1 |
| Minimum Order Quantity: | 10 PCS |
| Price: | USD25.5 |
| Packaging Details: | Assembled packing |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000PCS per week |
| Material: | SPCC Quality Cold Rolled Steel | Thickness: | 1.2mm |
|---|---|---|---|
| Tempered Glass Thickness: | 5mm | Loading Capacity: | 60KGS |
| Degree Of Protection: | IP20 | Surface Finish: | Degreasing, Pickling, Phosphating, Powder Coated |
| Product Specification: | 4U-27U | Width: | 600mm |
| Depth: | 450mm, 600mm | Color: | RAL9004, RAL9005, RAL7035 |
| Highlight: | 6U Wall Mounted Rack Network Solutions,9U Wall Mounted Rack Network Solutions,19 inch Wall Mounted Rack Network Solutions |
||

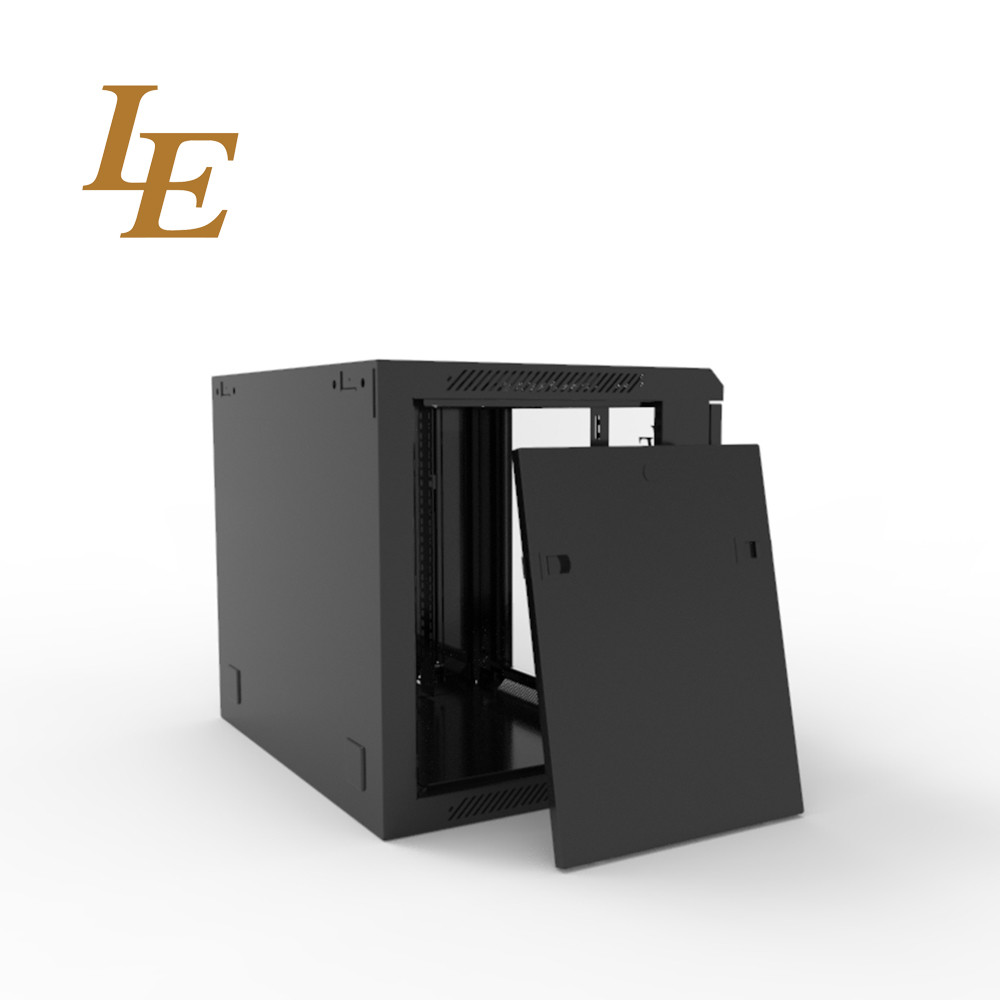

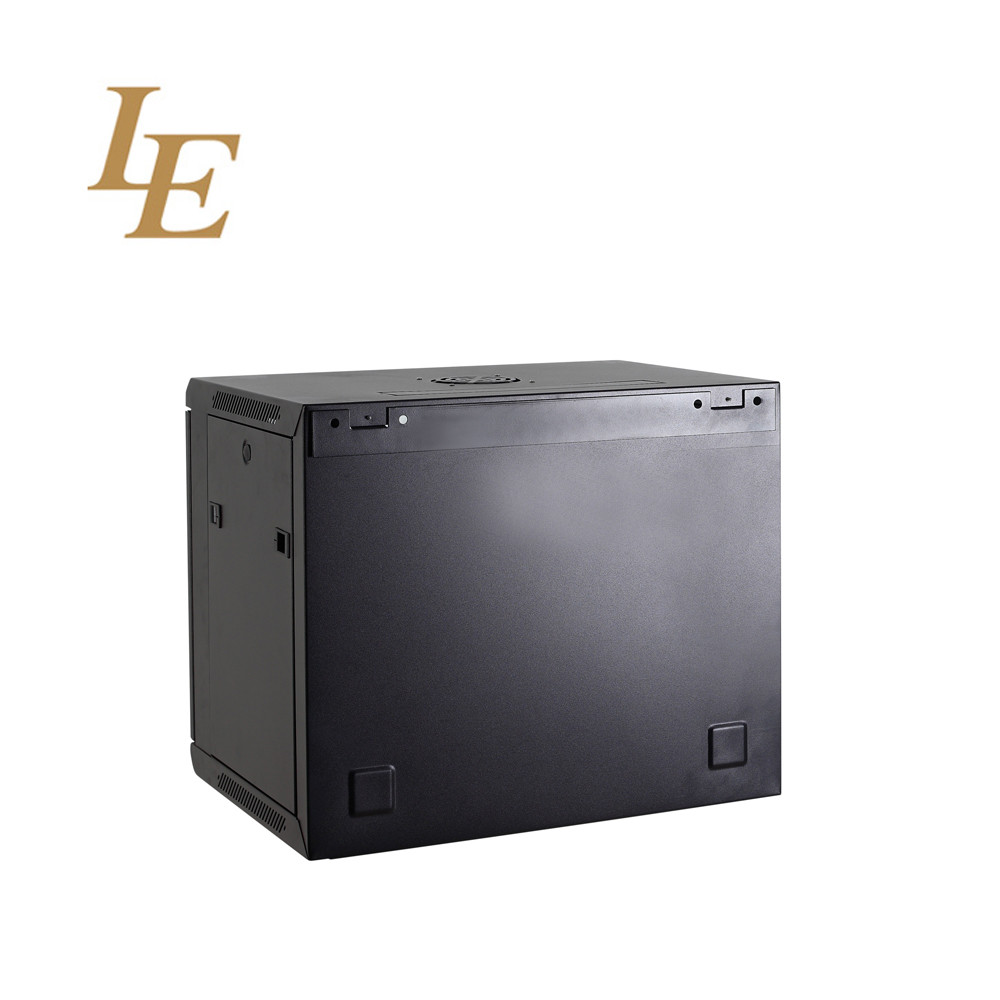

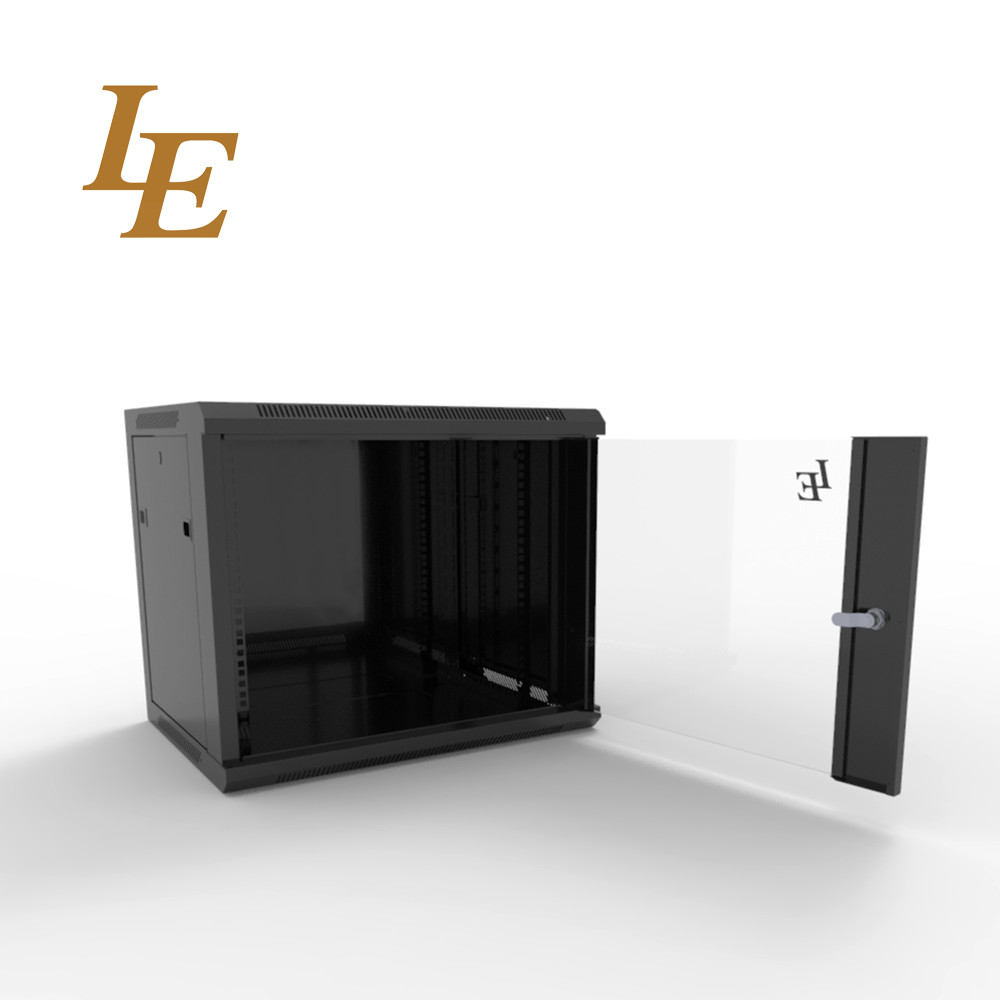

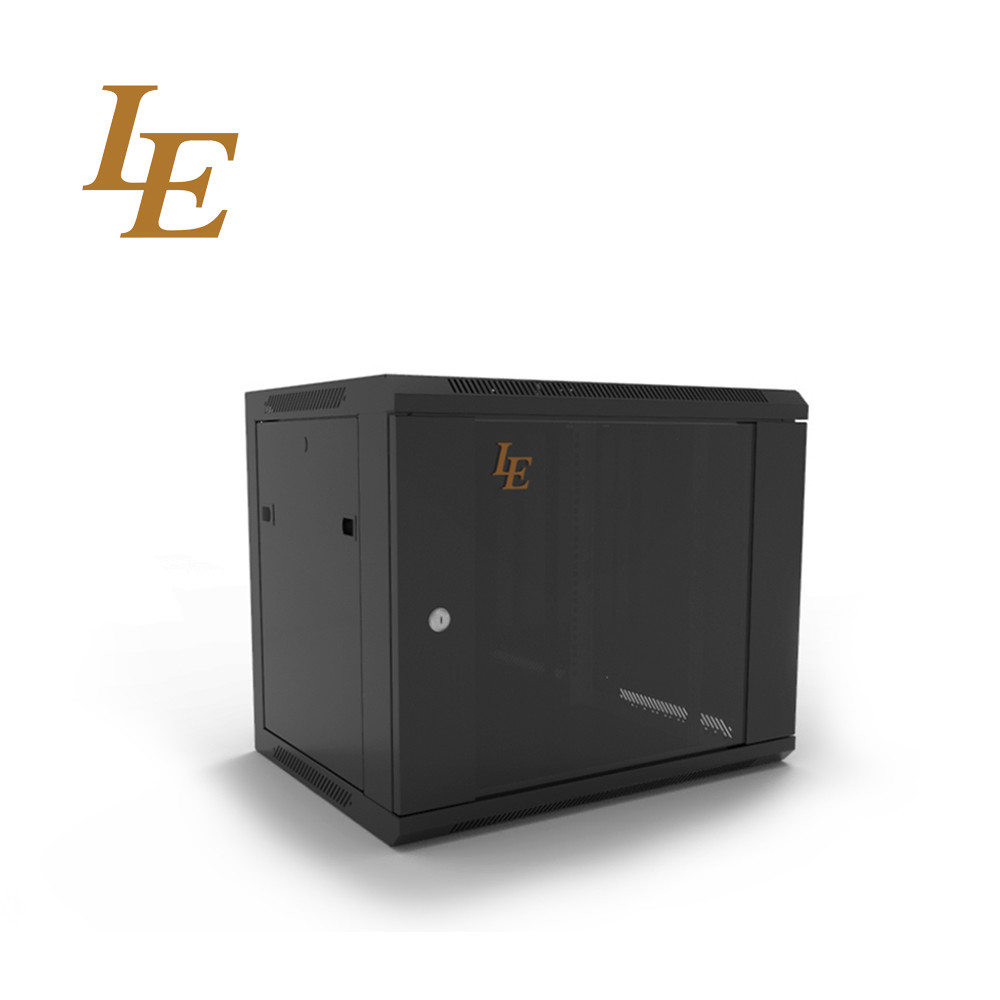

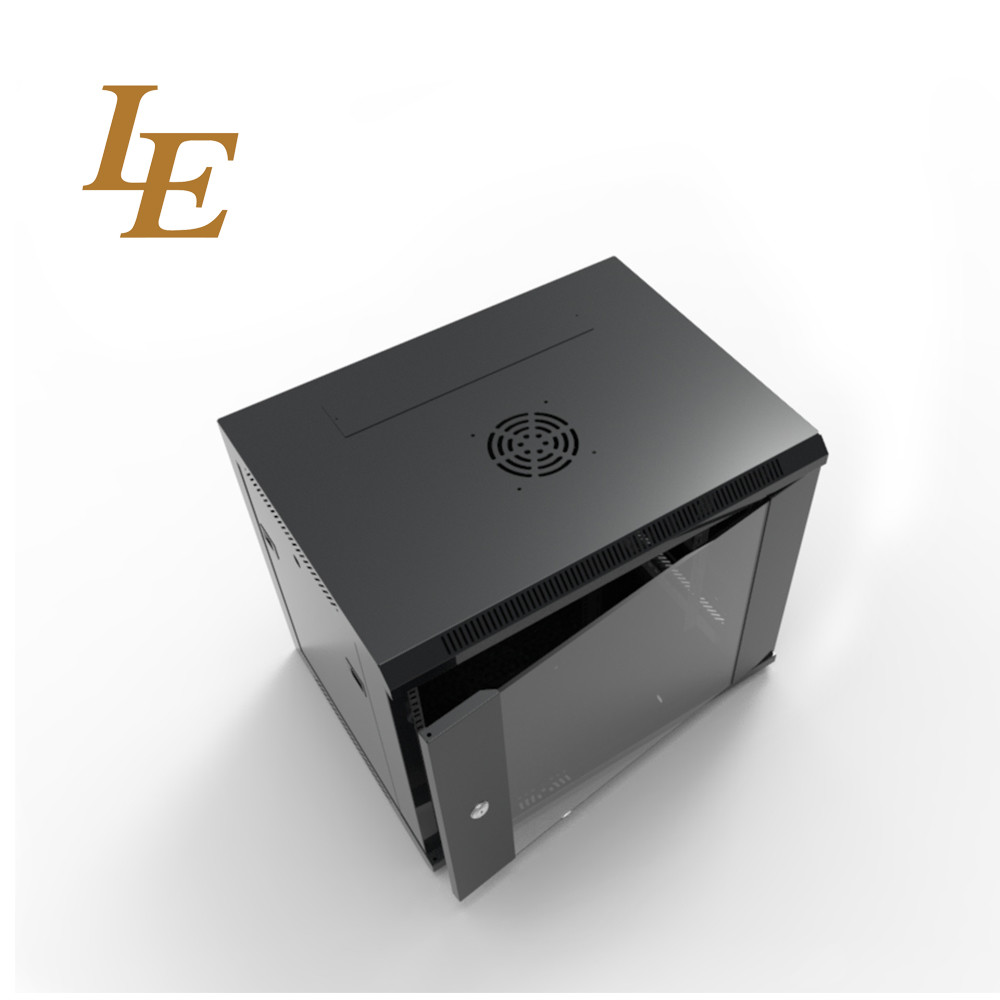

6U 9U 19inch Single Section IT Network Cabinet Wall Mounted Rack
| S/N | LE-WS1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard |
| Material | SPCC quality cold rolled steel: Thickness:1.2mm; Tempered glass: Thickness:5.0mm |
| Loading Capacity | Static loading: 60kg |
| Degree of protection | IP20 |
| Surface Finish | Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification | 4U-27U Width: 600mm Depth: 450mm, 600mm |
Main Structure
1. Installing Backboard
2. Mounting profile (L-shaped)
3. Cable entry plate
4. Side panel
5. Tempered glass front door
6. Tempered glass front door with
vented border
7. Tempered glass front door with
meshed border
