| Place of Origin: | China |
|---|---|
| Brand Name: | LE |
| Certification: | CE/ISO/ROHS |
| Model Number: | LE-GYXTW |
| Minimum Order Quantity: | 2km |
| Price: | 0.903USD/meter |
| Packaging Details: | reel |
| Delivery Time: | 25 working day |
| Payment Terms: | T/T |
| Supply Ability: | 80km per month |
| Product Name: | LE Outdoor Fiber Optic Cable Types High Temperature PE Jacket | Fiber Count: | 12-96 |
|---|---|---|---|
| Jacket Material: | PE | ||
| Highlight: | LE Outdoor Fiber Optic Cable,PE Jacket Fiber Optic Outdoor Cable,Multicore Fiber Optic Cable High Temperature |
||
General Description:

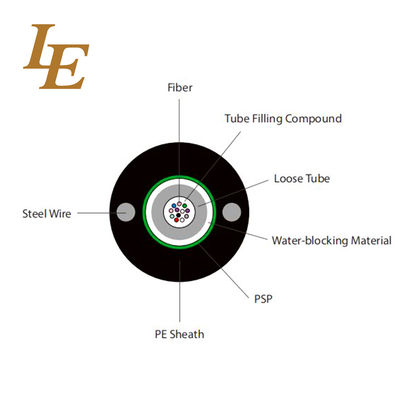

GYXTW fo cable, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Fiber Parameters
| No. | Items | Unit | Specification | |||||
| G.652D | ||||||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 | ||||
| 1550nm | μm | 10.4±0.5 | ||||||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |||||
| 3 | Cladding Non-Circularity | % | ≤0.7 | |||||
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |||||
| 5 | Coating Diameter | μm | 245±5 | |||||
| 6 | Coating Non-Circularity | % | ≤6.0 | |||||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |||||
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 | ||||
| 1550nm | dB/km | ≤0.25 | ||||||
| No. | Items | Unit | Specification | |||||
| OM2 50/125 | ||||||||
| 1 | Core Diameter | μm | 50.0±2.5 | |||||
| 2 | Cladding Diameter | μm | 124.8±1.0 | |||||
| 3 | Cladding Non-Circularity | % | ≤1.0 | |||||
| 4 | Core-Cladding Concentricity Error | μm | ≤1.5 | |||||
| 5 | Coating Diameter | μm | 245±7 | |||||
| 6 | Coating Non-Circularity | % | ≤6.0 | |||||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
| 8 | Bandwidth(min.) | 850nm | MHz·km | 600 | ||||
| 1300nm | MHz·km | 1200 | ||||||
| 9 | Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ||||
| 1300nm | dB/km | ≤1.0 | ||||||
Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
Our Company:
Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet,
wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop,
design and manufacture the indoor and outdoor cabinet products.
Q&A:
1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or
Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling for to the every
end. Our factory has gained CE,ROHS,SGS authentication.
