| Place of Origin: | China |
|---|---|
| Brand Name: | LE |
| Certification: | CE/ISO/ROHS |
| Model Number: | LE GYXTW |
| Minimum Order Quantity: | 3000 meters |
| Price: | USD129-198/km |
| Packaging Details: | Carton/roll |
| Delivery Time: | 30days |
| Supply Ability: | 100km per week |

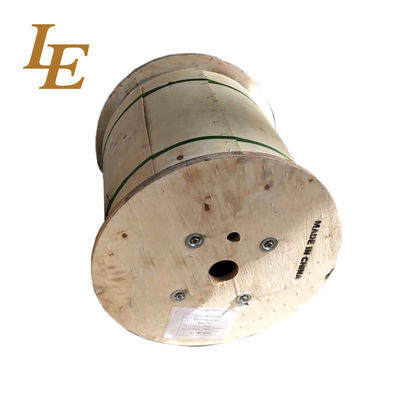

| Product Name: | Durable LE GYXTW 12 Core Fiber Optic Cable Meter Low Price | Fiber Count: | 2-48 |
|---|---|---|---|
| Color: | Black Or As You Like | Application: | Telecommunication |
| Certification: | ISO 9001,CE,ROHS | Jacket Material: | PE/LSZH/PU |
| Armored Or Not: | Armored | Strength Member: | Steel |
| Operating Temperature: | -40 To +70 Degrees Celsius | ||
| Highlight: | gyxtw 12 core fiber optic cable,armored 12 core fiber optic cable,custom meter 12 core fiber cable |
||
GYXTW fo cable, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
General Description for Durable LE GYXTW 12 Core Fiber Optic Cale Meter Low Price:
Fiber Parameters
| No. | Items | Unit | Specification | |||||
| G.652D | ||||||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 | ||||
| 1550nm | μm | 10.4±0.5 | ||||||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |||||
| 3 | Cladding Non-Circularity | % | ≤0.7 | |||||
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |||||
| 5 | Coating Diameter | μm | 245±5 | |||||
| 6 | Coating Non-Circularity | % | ≤6.0 | |||||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |||||
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 | ||||
| 1550nm | dB/km | ≤0.25 | ||||||
| No. | Items | Unit | Specification | |||||
| OM2 50/125 | ||||||||
| 1 | Core Diameter | μm | 50.0±2.5 | |||||
| 2 | Cladding Diameter | μm | 124.8±1.0 | |||||
| 3 | Cladding Non-Circularity | % | ≤1.0 | |||||
| 4 | Core-Cladding Concentricity Error | μm | ≤1.5 | |||||
| 5 | Coating Diameter | μm | 245±7 | |||||
| 6 | Coating Non-Circularity | % | ≤6.0 | |||||
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |||||
| 8 | Bandwidth(min.) | 850nm | MHz·km | 600 | ||||
| 1300nm | MHz·km | 1200 | ||||||
| 9 | Attenuation Coefficient | 850nm | dB/km | ≤3.0 | ||||
| 1300nm | dB/km | ≤1.0 | ||||||
| No. | Items | unit | Specification | |
| OM3 10G-150 | ||||
| 1 | Core Diameter | μm | 50.0±2.5 | |
| 2 | Cladding Diameter | μm | 124.8±1.0 | |
| 3 | Core Non-Circularity | % | ≤5.0 | |
| 4 | Cladding Non-Circularity | % | ≤1.0 | |
| 5 | Core-Cladding Concentricity Error | μm | ≤1.0 | |
| 6 | Coating Diameter | μm | 245±7 | |
| 7 | Coating Non-Circularity | % | ≤6.0 | |
| 8 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 9 | OFL Bandwidth | 850nm | MHz·km | ≥700 |
| 1300nm | MHz·km | ≥500 | ||
| 10 | Effective Modal Bandwidth | 850nm | MHz·km | ≥950 |
| 1300nm | MHz·km | ≥500 | ||
| 11 | Attenuation Coefficient | 850nm | dB/km | ≤3.0 |
| 1300nm | dB/km | ≤1.0 | ||
Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
